YWS-012(G3/8”)1.2NM³/min Cyclone gas water separator

Each air-water separator undergoes electrophoretic coating and sandblasting. Subsequent steps include internal and external anti-corrosion treatment followed by plastic spraying. This comprehensive process ensures the filter interior remains corrosion-free over the long term, effectively preventing secondary contamination while safeguarding the normal operation and protecting downstream components.

Technical Parameter

YM Model

YM086001

Original Filter Brand

Cyclone gas water separator

Original Model

YWS-012

Precision / Residual oil amount

/

Processing capacity

/

Working Temperature/Pressure

1.5~80/1.0Mpa

Shell material

Aluminum alloy

End Caps

Engineering plastic

Seal

Fluororubber

Pipe diameter

G3/8

Weight (including packaging)

0.7kg

Size packagingcm

32*13*13#

Dimensions(mm)

W

H

D




75

195

53



Country of Origin / HTS Code

CHINA / 8421999090

Notes

Please consult Yuanmei sales personnel for any remaining areas

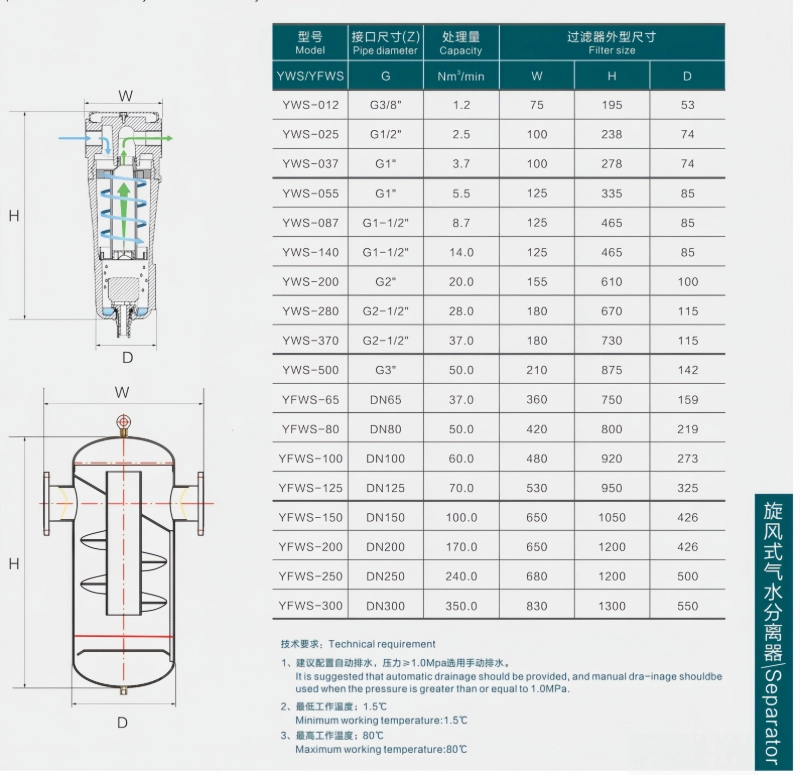

Drawing



  • Core advantage secto

    (1) Efficient water removal

    Remove 99.8% of liquid water from the air


  • (2) Efficient protection

    The efficient water removal in the early stage effectively protects the subsequent components from rust and also provides good protection for the pre-filters of the refrigerated dryer and the adsorption drye


    (3) Low voltage drop & Energy conservation

    It can operate at low pressure difference, reducing energy consumption and operating costs.


    (4) No maintenance required

    The internal design of the gas-water separator, combined with mature centrifugal separation technology, eliminates the need to replace internal components, thus saving costs in the long run.
