Key Advantages

The ACF Series MS-015-H filter element is designed for compact compressed air systems that require high-efficiency oil removal and stable long-term operation. Manufactured in Wuxi, Jiangsu, China, it reflects a precise balance between engineering performance and practical industrial usability.

One of its most important advantages is its ultra-low pressure loss of ≤0.011 bar, enabling 5–7% energy savings in compressed air systems. This makes it an effective solution for reducing operating costs while maintaining stable air quality output.

With a service life of up to 8,000 hours, the element significantly reduces replacement frequency and maintenance downtime. Combined with 24-hour shipment availability for standard models, it supports fast deployment in urgent industrial maintenance scenarios.

The product is certified under ISO8573-1, CE, and RoHS standards, ensuring compliance with international air quality and environmental safety requirements. These certification marks also confirm its suitability for industries with strict quality control protocols.

In addition, OEM drawing customization services are available, allowing adaptation to specific system designs. This flexibility is particularly valuable for equipment manufacturers and engineering projects requiring tailored filtration configurations.

Core Features

The MS-015-H model is engineered with advanced activated carbon filtration media to ensure effective adsorption of oil vapor and fine contaminants in compressed air systems.

It achieves a filtration precision of 0.01 μm with residual oil content as low as 0.003 ppm, providing extremely clean air output suitable for sensitive industrial applications. This high level of accuracy ensures stable performance in precision manufacturing environments.

Designed for smaller airflow systems, it supports a processing capacity of 1.5 Nm³/min, making it ideal for compact equipment setups or localized filtration points within larger systems.

The operating range is broad and stable, with a working temperature of 1.5–80°C and a pressure range of 0.1–2.0 MPa, allowing consistent performance under varying industrial conditions.

Structural components are selected for durability and reliability:

• Filter media: Activated carbon

• End caps: High-strength engineering plastic

• Seal material: Buna-N rubber for stable airtight performance

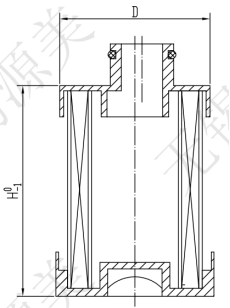

The compact dimensions of 61±1 mm diameter and 81±2 mm height make installation simple and space-efficient. With a lightweight structure of only 0.2 kg (including packaging), it is easy to handle and replace without specialized tools.

As a compressed air filter element, it is designed to integrate seamlessly into modern pneumatic systems requiring high-purity air output and stable operational efficiency.

Diverse Applications

The MS-015-H filtration element is widely used in industries where compressed air quality directly impacts product precision, equipment longevity, and production safety.

In laser cutting systems, it ensures clean and oil-free air supply, protecting optical components and improving cutting accuracy. Stable air purity helps maintain consistent processing quality and reduces maintenance risks.

In electronics manufacturing, it plays a critical role in preventing microscopic oil contamination that could damage sensitive components or reduce production yield. Its fine filtration capability ensures compliance with clean production standards.

For sandblasting operations, it helps maintain consistent abrasive performance by removing moisture and oil from the air stream, resulting in smoother surface finishing and reduced material waste.

Additional application areas include:

• Precision instrumentation assembly

• Small-scale pneumatic automation systems

• Laboratory air supply systems

• Packaging and labeling equipment

• General industrial compressed air networks

As an acf filter solution designed for compact systems, it delivers reliable performance where space constraints and air purity requirements must be balanced effectively.

User Value & Benefits

This filtration element delivers strong value in both operational efficiency and system reliability. Its low pressure drop design reduces compressor workload, leading to improved energy efficiency and lower long-term operating costs.

The extended service life of up to 8,000 hours reduces maintenance frequency, helping users minimize downtime and optimize production continuity. This is particularly beneficial in continuous operation environments where system stability is critical.

Supply reliability is ensured through stable production capacity exceeding 1000+ units, combined with fast dispatch capabilities. This makes it a dependable choice for both planned maintenance and emergency replacement scenarios.

As a dependable ACF replacement filter element, it ensures compatibility with existing compressed air systems while maintaining consistent filtration performance. Its standardized design simplifies installation and reduces system adjustment requirements.

Support from a professional replacement filter element supplier ensures technical assistance, customization options, and reliable after-sales service. Engineering support through OEM drawing customization further enhances its adaptability to different system configurations.

Manufactured within a modern industrial filter element factory, the product benefits from controlled production processes, strict quality inspection, and standardized testing procedures, ensuring consistent performance across batches.

Compliance with ISO8573-1 air quality standards guarantees that output air meets internationally recognized cleanliness requirements, making it suitable for regulated industrial environments.

Overall Performance Value

The MS-015-H model delivers a compact yet highly efficient solution for compressed air purification. Its combination of high filtration accuracy, low energy loss, and durable construction makes it suitable for a wide range of industrial applications.

By integrating activated carbon technology with precision structural design, it ensures stable oil removal performance even under fluctuating operating conditions. The result is cleaner compressed air, improved equipment protection, and enhanced production reliability.

Whether used in precision manufacturing, electronics production, or general pneumatic systems, this filtration solution provides consistent performance with minimal maintenance demands—making it a practical and cost-effective choice for modern industrial air systems.
