Stainless Steel Sterilizing Filter（1.0MPa）

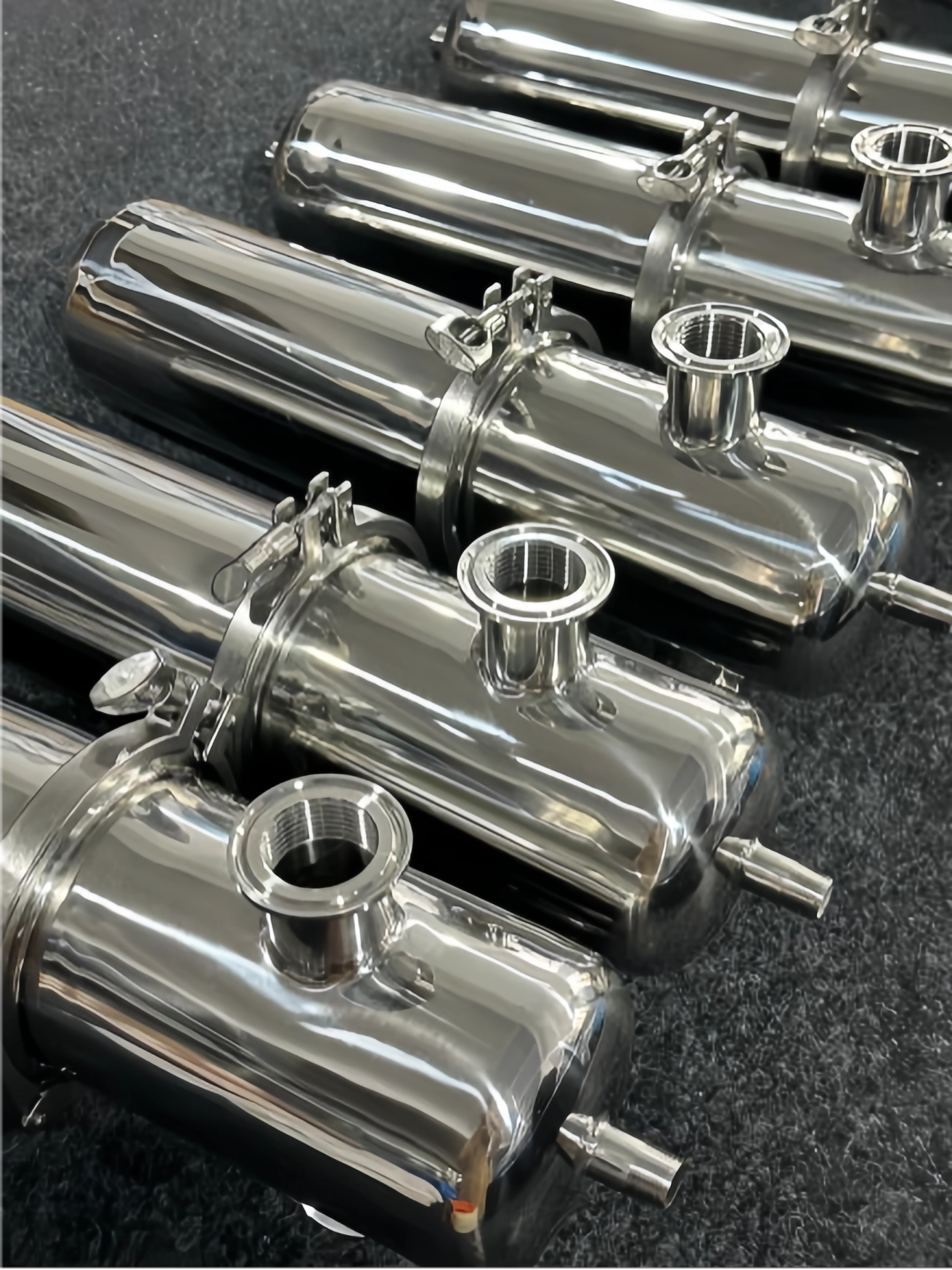

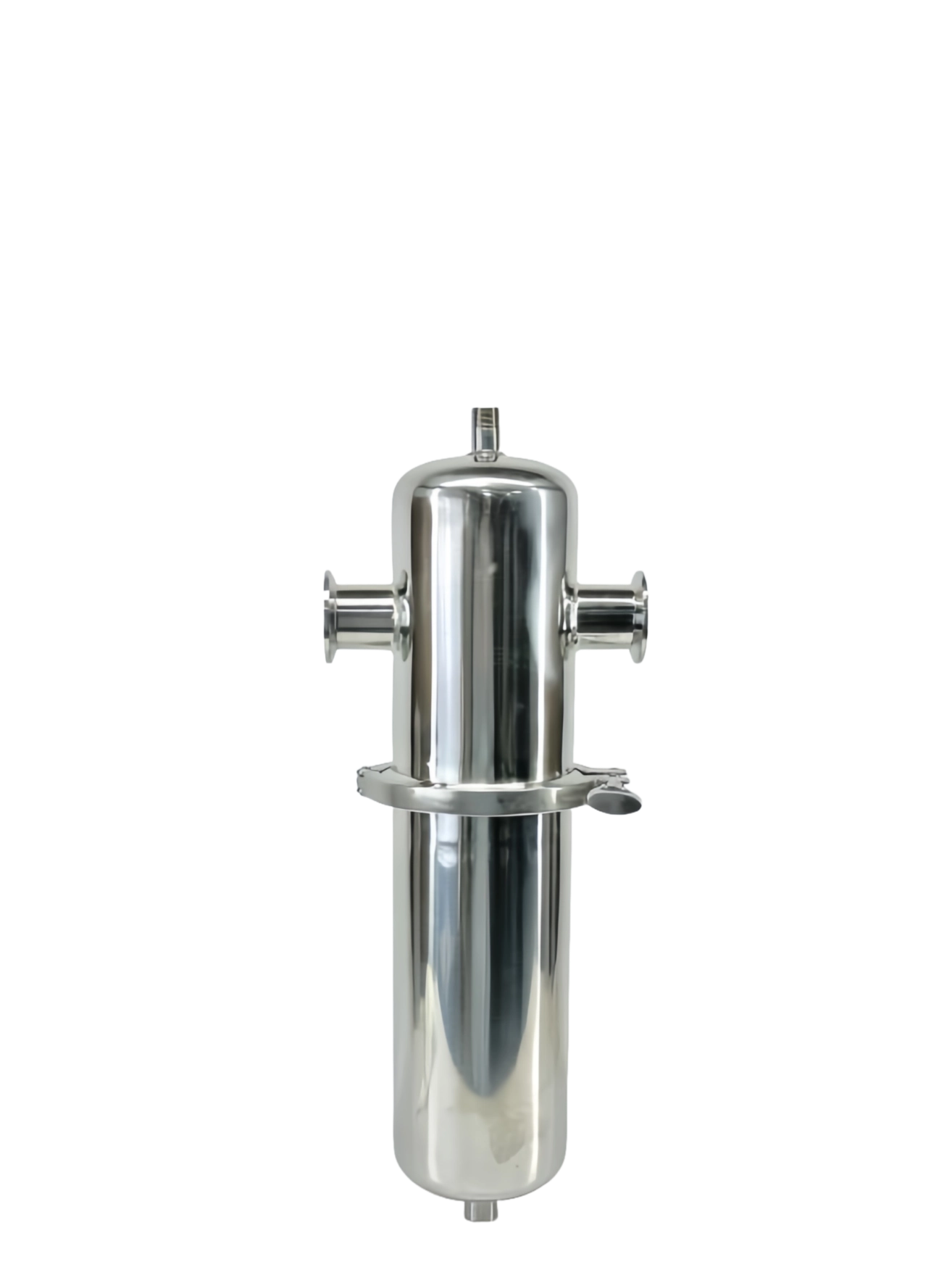

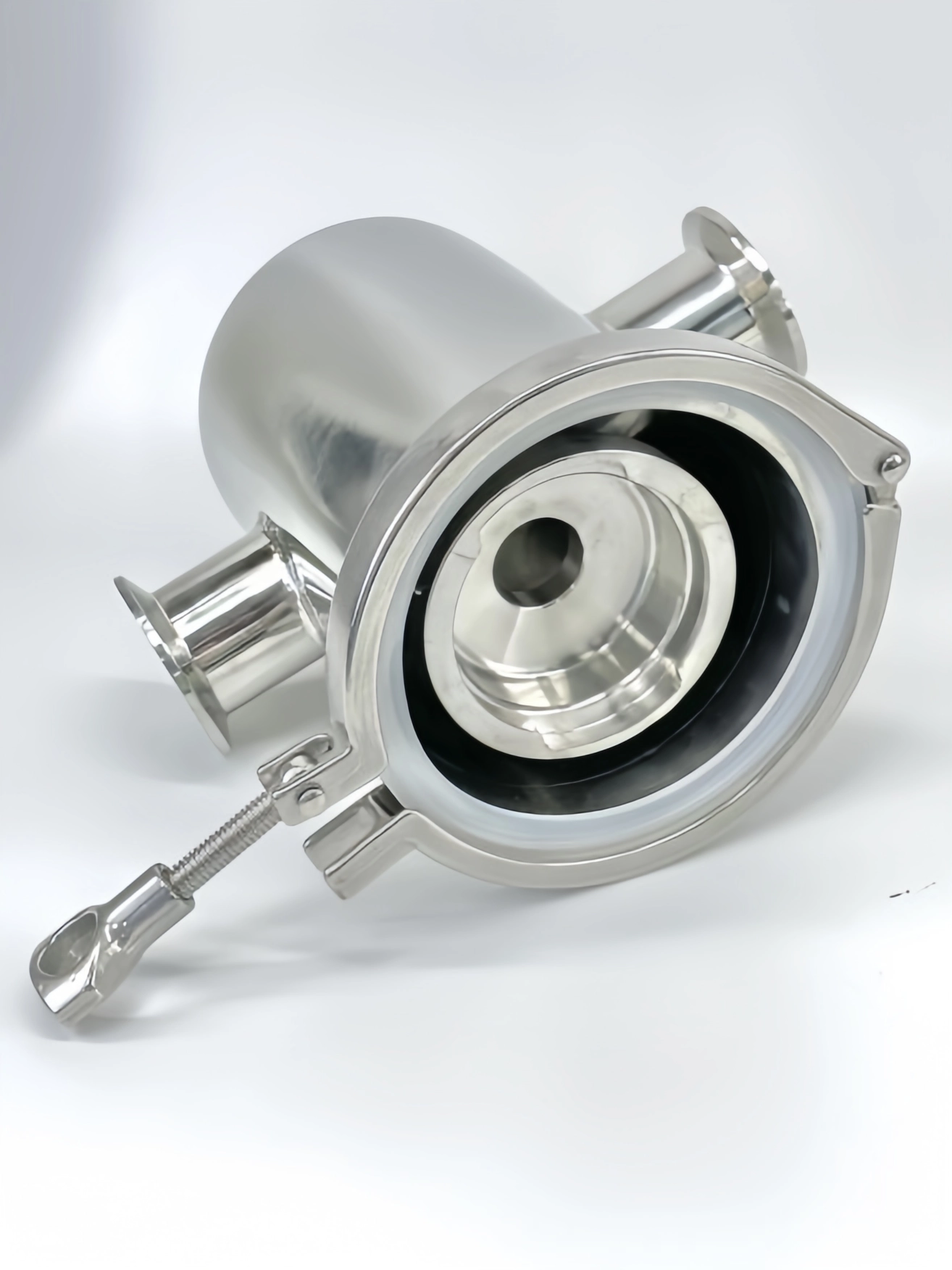

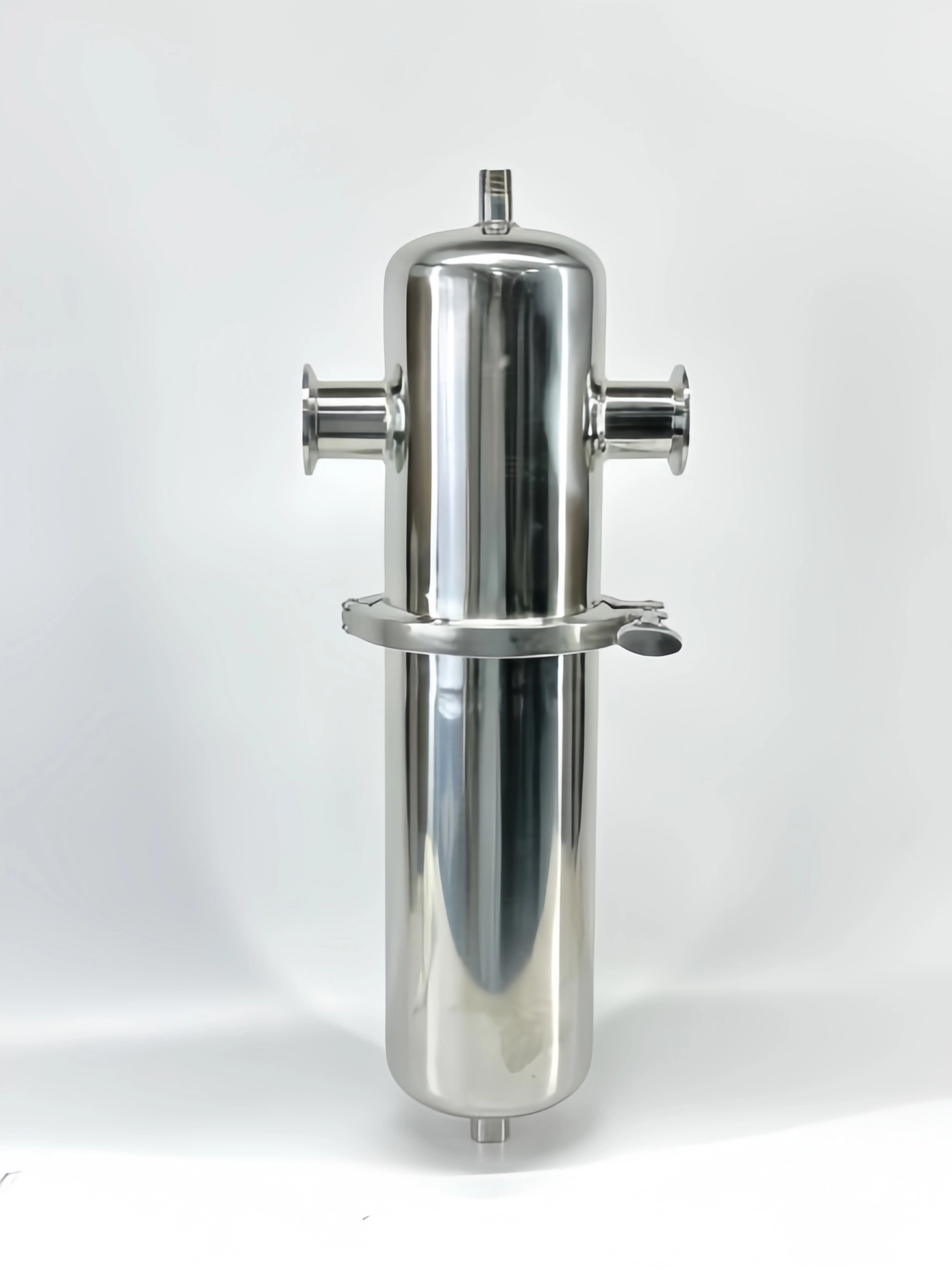

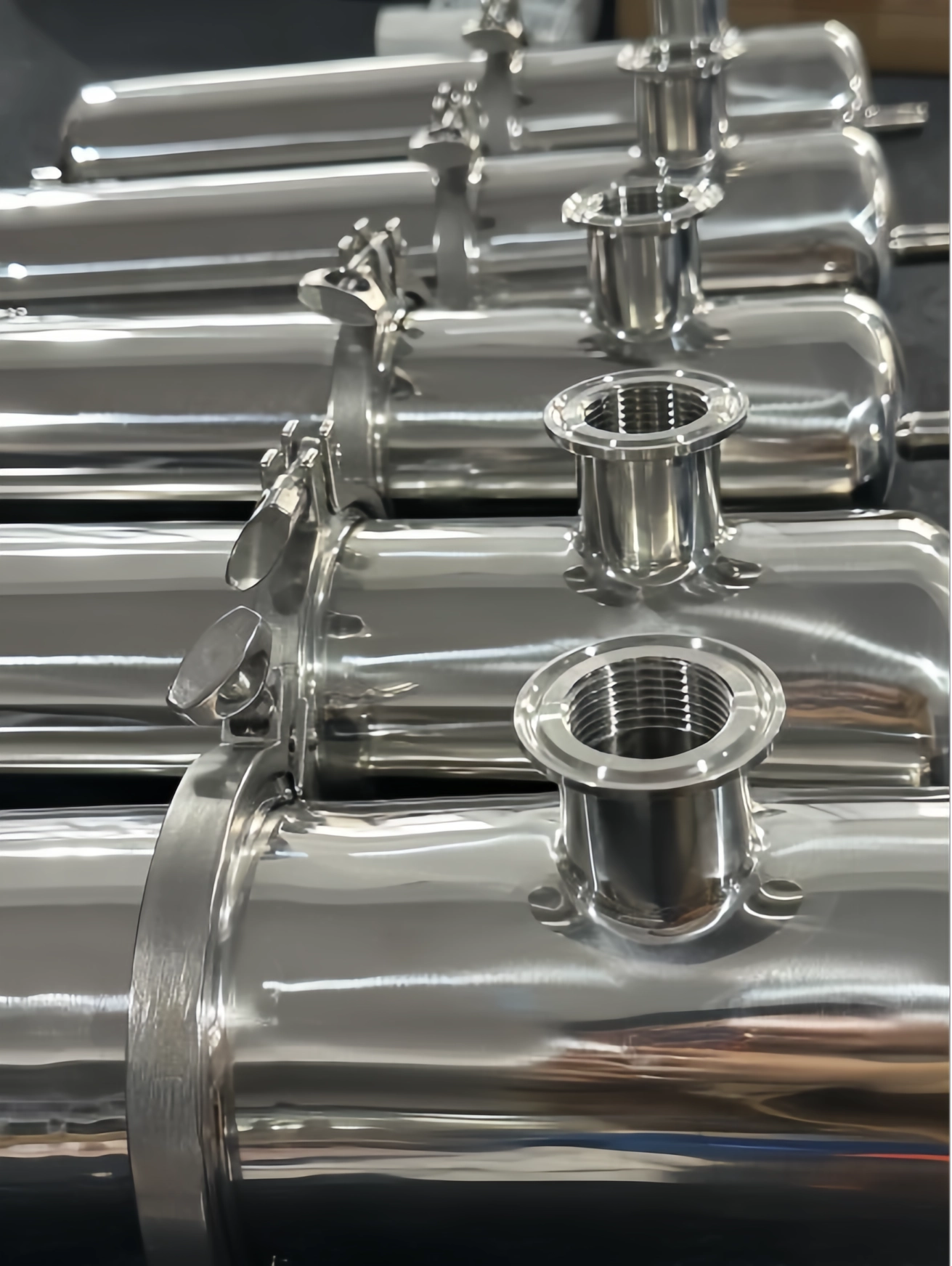

The ST stainless steel filter materialis made of stainless steel (SUS304/316),with polished inner and outer surfaces (grade Ra0.3).The filter element uses high-efficiency precision filter elements,and the sterilization is made of hydrophobic and sterilemembrane folded PTFE material.It has passed 100% DOP integritytesting and is widely used in the pharmaceutical, semiconductor, and food chemicalindustries.
Note:The stainless steel shell material and filter material have both passed the testing of SGS,an internationally authoritative third-party testing agency,and meet the requirements for food and drug grade use.

INQUIRY

DOWNLOAD

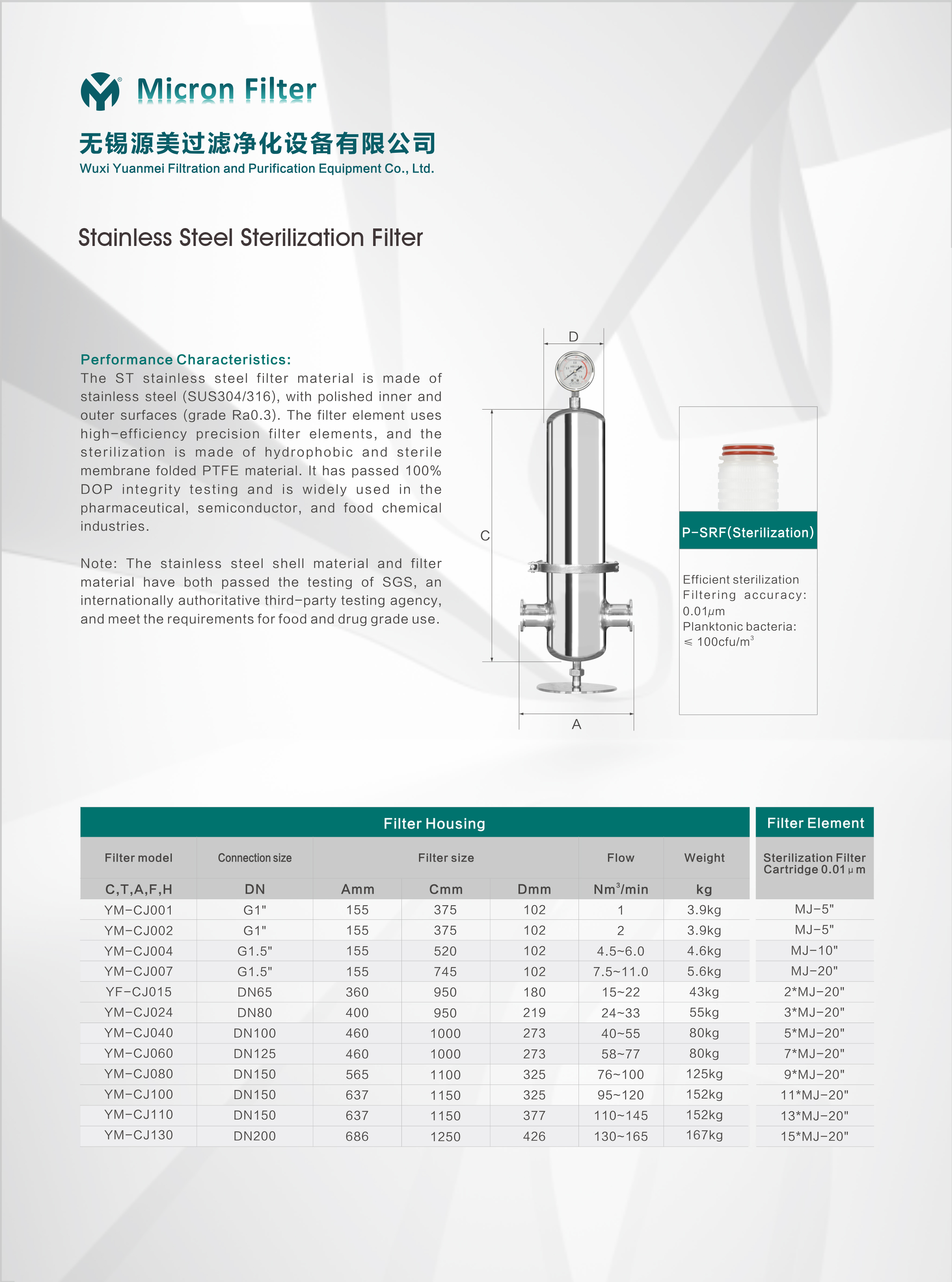

Technical Parameter

Stainless Steel Sterilizing Filter

Package Image

Absolute sterilization guarantee
Filtration accuracy: 0.01μm; logarithmic removal value: ≥6 (99.9999%); Efficiency: ≥99.999%
Thoroughly filter out all pollutants such as bacteria, microorganisms and bacteriophages in the compressed air.
Fully compliant certification
The material complies with FDA 21 CFR 177.2600 and USP Class VI standards.
Product design and production comply with the requirements of regulations such as cGMP, GMP, and ISO 14644.
Outstanding integrity
It adopts high-strength hydrophobic PTFE (polytetrafluoroethylene) filter membrane, which is of high strength, not easy to break and can be sterilized by multiple high-pressure steam online (SIP) processes.
Provide complete bubble point test data and filter integrity inspection services.
Reduce the total cost of ownership
Low voltage drop design reduces energy consumption.
Long-life filter elements reduce the frequency of replacement and the cost of waste disposal

Filter material: Imported hydrophobic PTFE membrane with multi-layer support protection.
Shell material: 304/316L stainless steel (BA/EP grade polished), Ra ≤ 0.6μm, ensuring a smooth surface without residue.
Seal :PTFE, heat-resistant and chemically resistant
Interface form: Sanitary chuck connection
Maximum operating temperature: Usually up to 125°C, supports online steam sterilization.

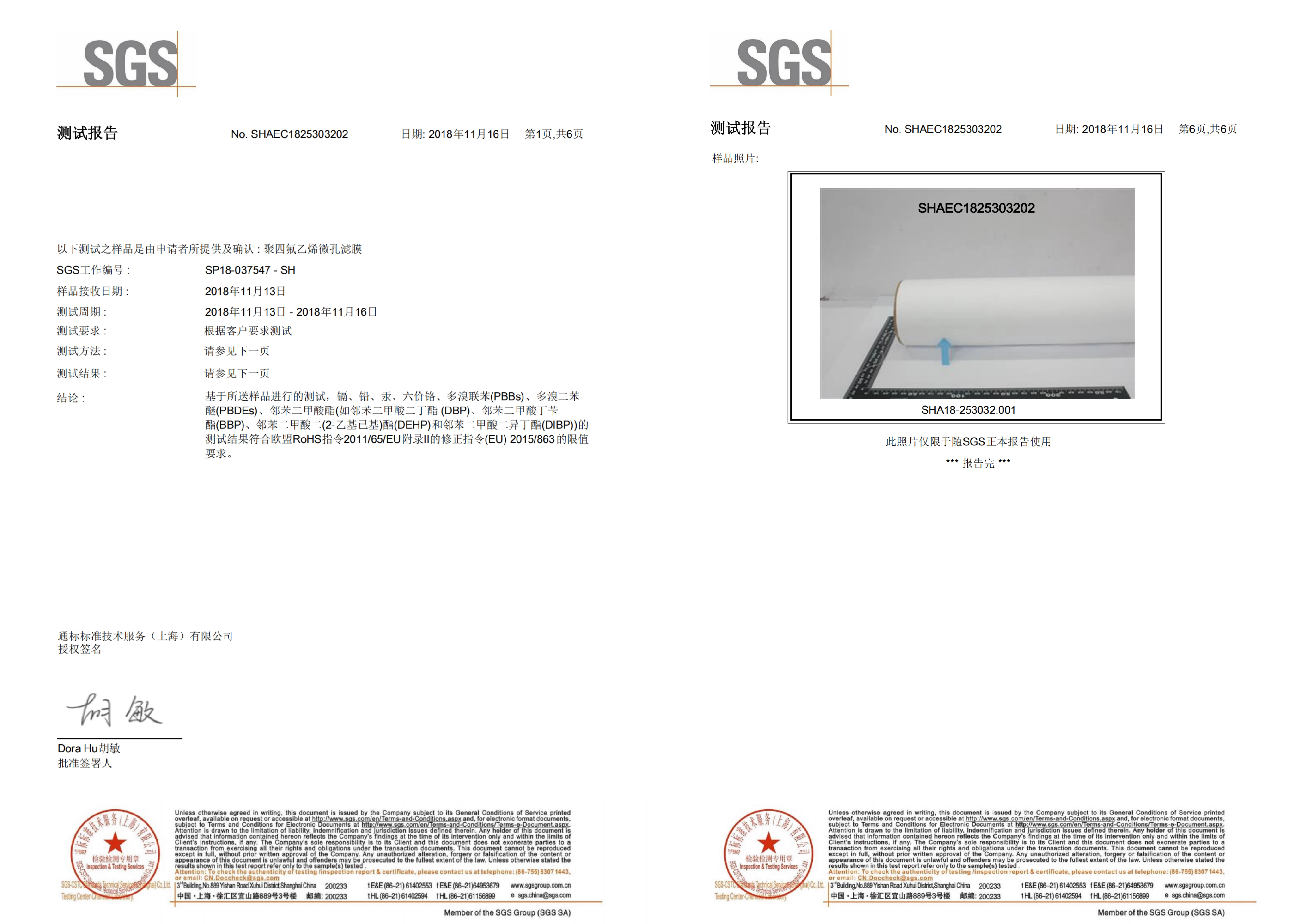

Test report
