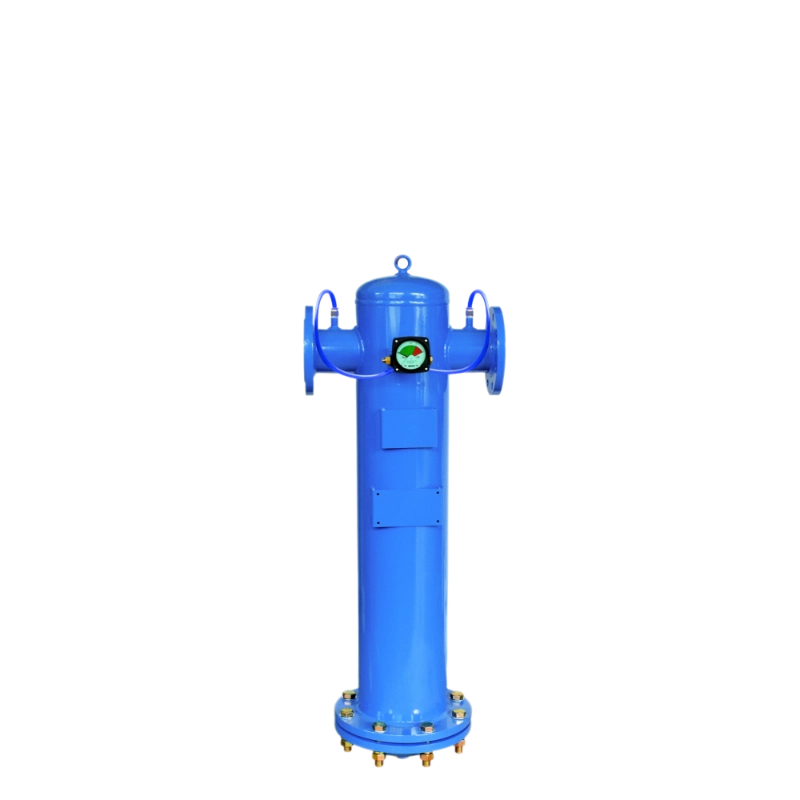

In modern industrial applications, maintaining clean and stable process air or gas is essential to ensure the reliability and efficiency of production systems. The carbon steel flange filter has emerged as a crucial component for high-performance filtration across various sectors. Designed for corrosion resistance, high strength, and exceptional sealing performance, these filters provide long-term protection for sensitive equipment under harsh operational conditions.
Whether used in compressed air systems, petrochemical processes, or nuclear power facilities, carbon steel flange filters deliver superior particle removal efficiency while maintaining mechanical robustness and compliance with global industrial standards. In this blog post, as a high precision compressed air filter manufacturer, Yuanmei will share the features of carbon steel flange filter, its advantages, applications, etc.
The corrosion-resistant properties of carbon steel flange filters are achieved through meticulous surface treatment processes. Each filter undergoes shot blasting to remove surface impurities and improve coating adhesion. Following this step, both internal and external anti-corrosion treatments are applied, culminating with plastic spraying for enhanced durability.
This combination of treatments ensures that the inner surfaces of the filter remain corrosion-free for extended periods, effectively preventing secondary contamination of filtered air or gas. Moreover, the high-strength carbon steel body provides mechanical stability under high-pressure and high-humidity environments, making it suitable for continuous operation in demanding industrial conditions.
The filtration accuracy of a carbon steel flange filter determines its effectiveness in capturing particles of varying sizes. The filters are available in multiple classes, each tailored to specific applications and degrees of filtration precision:
Class C – 3 Micron (Pre Filter): Used for preliminary filtration, effectively removing larger particulates and protecting downstream filters.
Class T – 1 Micron (After Filter): Provides secondary filtration to further purify compressed air.
Class A – 0.01 Micron (Line Filter): Delivers ultra-fine filtration suitable for high-precision industrial processes.
Class F – 0.01 Micron (Fine Filter): Ensures clean, oil-free air for sensitive mechanical or electronic applications.
Class H – 0.01 Micron (Activated Carbon Filter): Designed to eliminate oil vapors, odors, and other trace contaminants for superior air purity.
This multi-stage filtration system guarantees optimized air quality at every stage of the production line, significantly improving operational reliability and product quality.
The manufacturing process of each carbon steel flange filter combines mechanical precision with advanced surface engineering techniques:
Shot Blasting – Ensures a clean, uniform surface by removing oxides and impurities.
Internal and External Anti-Corrosion Treatment – Enhances long-term resistance to rust, moisture, and chemical exposure.
Plastic Spraying – Provides a protective and aesthetic coating that reinforces sealing integrity and prevents corrosion propagation.
This systematic production process not only improves surface bonding strength but also ensures consistent filtration efficiency throughout the product’s service life. Filters with interior anti-corrosion spraying are particularly suited for humid or chemically active environments, while untreated interiors may be chosen for standard air filtration systems where conditions are less demanding.
Carbon steel flange filters play a pivotal role across a wide spectrum of industries where air purity, mechanical reliability, and system safety are non-negotiable. Common application sectors include:
Industrial-Grade Compressed Air Systems: Ensuring clean and dry air for pneumatic tools, actuators, and instrumentation.
Petrochemical and Metallurgical Industries: Withstanding corrosive gases, high pressures, and temperature extremes.
Thermal and Nuclear Power Plants: Delivering consistent filtration under stringent safety and performance standards.
Precision Mechanical Processing and High-End Manufacturing: Maintaining contamination-free air for CNC machines, robotic systems, and clean production lines.
Extreme Environmental Conditions: Functioning reliably in high dust, humidity, or pressure environments without performance degradation.
Such versatility makes carbon steel flange filters an essential element in both new installations and retrofitted air treatment systems, where durability and consistency are paramount.
Every carbon steel flange filter is engineered and manufactured in accordance with international safety and quality standards. Depending on the regional and industrial requirements, filters can meet:
GB150 (China National Standard)
ASME (American Society of Mechanical Engineers)
DIN (German Industrial Standard)
These certifications ensure that the filters meet rigorous benchmarks for pressure tolerance, welding integrity, and corrosion protection, providing end-users with confidence in their reliability and long-term performance.
The widespread adoption of carbon steel flange filters can be attributed to their mechanical resilience, long service life, and cost-effectiveness. Key advantages include:
High Sealing Efficiency – The flange structure ensures tight connections, minimizing air leakage.
Extended Service Lifespan – Anti-corrosion coatings and robust construction reduce maintenance frequency.
Stable Filtration Performance – Maintains consistent filtration accuracy under fluctuating operational pressures.
Customizable Design – Available in multiple sizes, filtration classes, and pressure ratings to suit diverse applications.
Through these strengths, carbon steel flange filters significantly enhance system efficiency, minimize downtime, and reduce operational costs across industrial facilities.
The carbon steel flange filter represents a fusion of engineering strength and filtration precision, enabling industries to meet modern standards of performance and safety. From 3-micron pre-filtration to 0.01-micron fine filtration, these systems ensure optimal air quality for even the most critical applications.
With corrosion-resistant construction, high sealing capability, and international certifications, carbon steel flange filters stand out as a dependable solution for industries that demand uncompromising reliability. Whether in energy generation, petrochemical refining, or precision manufacturing, they continue to define the benchmark for industrial-grade filtration systems worldwide.
